The Computer Mother Board Explained

The main printed circuit board in a computer is known as the motherboard. Other names for this central computer unit are system board, mainboard, or printed wired board (PWB). The motherboard is sometimes shortened to Mobo.

Numerous major components, crucial for the functioning of the computer, are attached to the motherboard. These include the processor, memory, and expansion slots. The motherboard connects directly or indirectly to every part of the PC.

The type of motherboard installed in a PC has a great effect on a computer's system speed and expansion capabilities.

Major Motherboard Components and Their Functions

 A labeled ASRock K7VT4A Pro Mainboard.


 Central Processing Unit (CPU)

The Computer's Microprocessor

Also known as the microprocessor or the processor, the CPU is the computer's brain. It is responsible for fetching, decoding, and executing program instructions. It also performs mathematical and logical calculations.

The processor chip is identified by the processor type and the manufacturer. This information is usually inscribed on the chip itself. For example, Intel 386, Advanced Micro Devices (AMD) 386, Cyrix 486, Pentium MMX, Intel Core 2Duo, or Core i7.

If the processor chip is not on the motherboard, you can identify the processor socket as socket 1 to Socket 8, and LGA 775 among others. This can help you identify the processor that fits in the socket. For example, rPGA 988A/Socket G1 will fit any of the following processors;

  • Intel Core i7 (600, 700, 800, 900 series)
  • Intel Core i5 (400, 500 series)
  • Intel Core i3 (300 series)
  • Intel Pentium (P6000 series)
  • Intel Celeron (P4000 series)

Random Access Memory (RAM)

The Computer Memory

Random Access Memory, or RAM, usually refers to computer chips that temporarily store dynamic data to enhance computer performance while you are working.

In other words, it is the working place of your computer, where active programs and data are loaded so that any time the processor requires them, it doesn't have to fetch them from the hard disk.

Random-Access Memory is volatile, meaning it loses its contents once power is turned off. This is different from non-volatile memory, such as hard disks and flash memory, which do not require a power source to retain data.

When a computer shuts down properly, all data located in RAM is returned to permanent storage on the hard drive or flash drive. At the next boot-up, RAM begins to fill with programs automatically loaded at startup, a process called booting. Later on, the user opens other files and programs that are still loaded in memory.

Basic Input/Output System (BIOS)

The BIOS

BIOS stands for Basic Input/Output System. BIOS is a "read-only" memory, which consists of low-level software that controls the system hardware and acts as an interface between the operating system and the hardware.

Most people know the term BIOS by another name—device drivers or drivers. BIOS is essentially the link between computer hardware and software in a system.

All motherboards include a small block of Read-Only Memory (ROM) separate from the main system memory used for loading and running software. The BIOS contains all the code required to control the keyboard, display screen, disk drives, serial communications, and several miscellaneous functions.

The system BIOS is a ROM chip on the motherboard used during the startup routine (boot process) to check out the system and prepare to run the hardware.

The BIOS is stored on a ROM chip because ROM retains information even when there is no power for the computer.

Complimentary Metal Oxide Semiconductor Random Access Memory (CMOS RAM)

CMOS Battery

A CMOS Battery.

The CMOS Battery

Motherboards also include a small separate block of memory made from CMOS RAM chips which are kept alive by a battery (known as a CMOS battery) even when the PC’s power is off. This prevents reconfiguration when the PC is powered on.

CMOS devices require very little power to operate.

The CMOS RAM is used to store basic information about the PC’s configuration for instance:-

  • Floppy disk and hard disk drive types
  • Information about CPU
  • RAM size
  • Date and time
  • Serial and parallel port information
  • Plug and Play information
  • Power Saving settings

Other Important data kept in CMOS memory is the time and date, which are updated by a Real-Time Clock (RTC).

Cache Memory

The Level 2 Cache Memory on an Old Motherboard

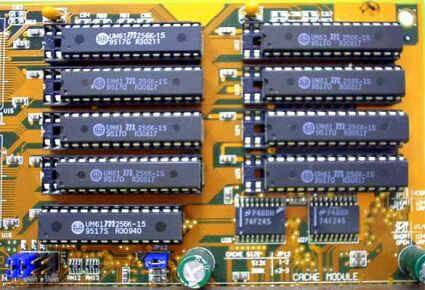

L2 cache on an old motherboard.

The Computer Cache Memory

Cache memory is a small block of high-speed memory (RAM) that enhances PC performance by pre-loading information from the (relatively slow) main memory and passing it to the processor on demand.

Most CPUs have an internal cache memory (built into the processor) known as Level 1 or primary cache memory. This can be supplemented by external cache memory fitted on the motherboard. This is the Level 2 or secondary cache.

In modern computers, Levels 1 and 2 cache memory are built into the processor die. If a third cache is implemented outside the die, it is known as the Level 3 (L3) cache.

Expansion Bus

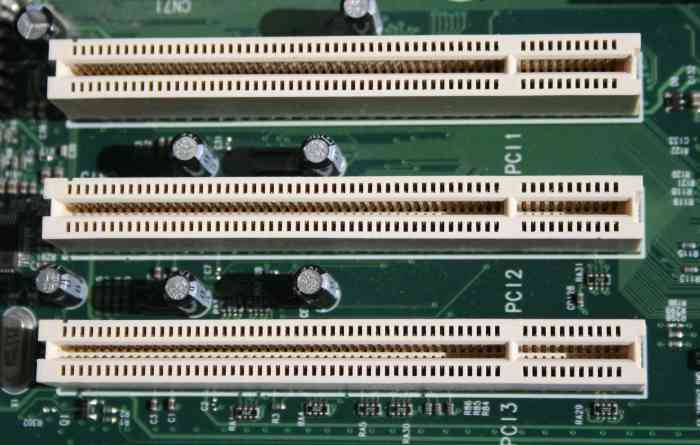

PCI slots.

The Expansion Buses

An expansion bus is an input/output pathway from the CPU to peripheral devices. It is made up of a series of slots on the motherboard. Expansion boards (cards) plug into the bus.

PCI is the most common expansion bus in a PC and other hardware platforms. Buses carry signals such as data, memory addresses, power, and control signals from component to component. Other types of buses include ISA and EISA.

Expansion buses enhance the PC's capabilities by allowing users to add missing features to their computers by slotting adapter cards into expansion slots.

This introduction to computer bus article covers all of them including the new types.

The Computer Chip-sets

A chipset is a group of small circuits that coordinate the flow of data to and from a PC's key components. These key components include the CPU itself, the main memory, the secondary cache, and any devices located on the buses.

A chipset also controls data flow to and from hard disks and other devices connected to the IDE channels.

A computer has got two main chipsets:

  • The NorthBridge (also called the memory controller) is in charge of controlling transfers between the processor and the RAM, which is why it is located physically near the processor. It is sometimes called the GMCH, for Graphic and Memory Controller Hub.
  • The SouthBridge (also called the input/output controller or expansion controller) handles communications between slower peripheral devices. It is also called the ICH (I/O Controller Hub). The term "bridge" is generally used to designate a component which connects two buses.

·         Chipset manufacturers include SIS, VIA, ALI, and OPTI.

The CPU Clock

The CPU clock synchronizes the operation of all parts of the PC and provides the basic timing signal for the CPU. Using a quartz crystal, the CPU clock breathes life into the microprocessor by feeding it a constant flow of pulses.

For example, a 200 MHz CPU receives 200 million pulses per second from the clock. A 2 GHz CPU gets two billion pulses per second. Similarly, in any communications device, a clock may be used to synchronize the data pulses between sender and receiver.

A "real-time clock," also called the "system clock," keeps track of the time of day and makes this data available to the software. A "time-sharing clock" interrupts the CPU at regular intervals and allows the operating system to divide its time between active users and/or applications.

The Switches and Jumpers

  • DIP (Dual In-line Package) switches are small electronic switches found on the circuit board that can be turned on or off just like a normal switch. They are very small and so are usually flipped with a pointed object, such as the tip of a screwdriver, a bent paper clip, or a pen top. Take care when cleaning near DIP switches, as some solvents may destroy them. Dip switches are obsolete and you will not find them in modern systems.
  • Jumper pins are small protruding pins on the motherboard. A jumper cap or bridge is used to connect or short a pair of jumper pins. When the bridge is connected to any two pins, via a shorting link, it completes the circuit and a certain configuration has been achieved.
  • Jumper caps are metal bridges that close an electrical circuit. Typically, a jumper consists of a plastic plug that fits over a pair of protruding pins. Jumpers are sometimes used to configure expansion boards. By placing a jumper plug over a different set of pins, you can change a board's parameters.

NOTE: You can check the jumper pins and jumper cap at the back of an IDE hard disk and a CD/DVD ROM/Writer.
